Tsiolkovsky — YXD55S-DK34P-DWP IP65 55 inch Single Side Outdoor Standing Digital Signage
Project configuration, quantities and supply terms are confirmed individually.
Price, lead time and configuration on request
Request a configurationSpecifications
- Display area (mm): 680x1210
- Resolution: 2160x3840
- Aspect Ratio: 9:16
- Brightness (cd/M²): 3000, 2500, 2000
- Color: 16.7M
- Viewing Angle: 178/178
- Contract Ratio: 1400:1
- Backlight life: 50000hrs
- CPU: RK3288, 4-core
- RAM: 2G
- Storage: 8G / 16G
- Network: WIFI, LAN
- Bluetooth: Yes
- Option: 4G module
- Version: 5.1 / 7.1
- OS: Android ( Window is optional)
- Inside port: USB, SD card port, LAN, Audio
- Outside port: 2*USB
- Dimension (mm): 2000x950x260
- G.W. (KGS): 197
- Waterproof speaker: Yes
- Cooling System: Air condition (fan is optional)
- Brightness Adjust: Yes
- Leakage Protection: Yes
- Overvoltage Protection: Yes
- Microcomputer Timer Switch: Yes
- Lightning Protection: Yes
- Hide Vents And Locks: Yes
- Tempered Glass: Yes
- Waterproof: Yes
- Dustproof: Yes
- Option: AR Tempered Glass
- Power input: AC110~240V 60HZ
- Power Consumption: 380W
- working humidity: 5% - 90%
- Working Temperature: -20°C - +50 °C
- Power cable: 2 meters, built in
- Accessories box: Remote control, Keys, User manual, Software CD, Wheels(option)

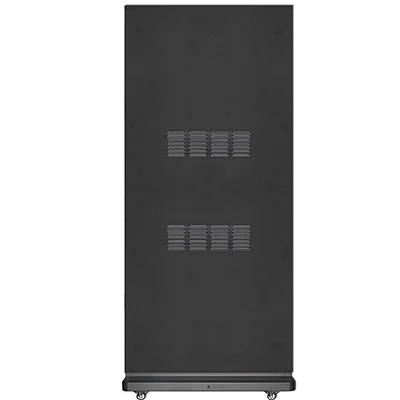

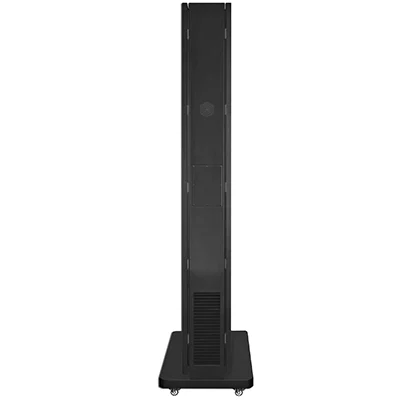

Catalog image; configuration and appearance are confirmed when ordering.
