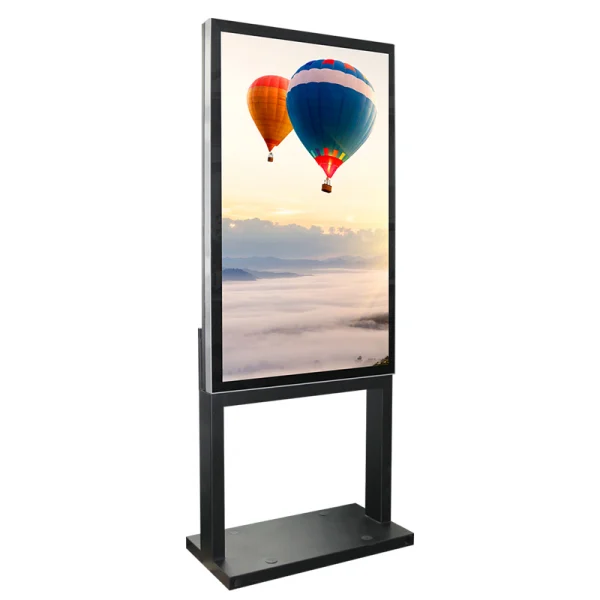

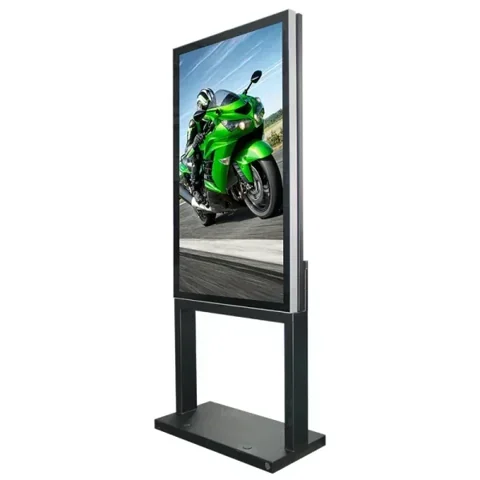

Tsiolkovsky — Bonded YXD55S-DWX IP67 55inch Single Side Outdoor Fanless Digital Signage
Project configuration, quantities and supply terms are confirmed individually.
Price, lead time and configuration on request
Request a configurationSpecifications
- Size: 55inch IPS Screen
- Display Area (mm): 1210*680mm
- Resolution: 1080*1920
- Brightness (Cd/M²): 3000
- Color: 16.7M
- Backlight Life: 50000H
- Aspect Ratio: 16:9
- Viewing Angle: 178/178
- Contract Ratio: 3000：1
- OS: Android
- Version: 7.1
- CPU: RK3288 quad-core, 2.0
- RAM: 2G
- Storage: 8G/16G
- Network: WIFI,LAN
- Option: 4G Module
- Dimension (Mm): 1950*770*140
- Waterproof Speaker: yes
- Brightness Adjust: yes
- Cooling System: Air Condition (Fan Is Optional)
- Leakage Protection: yes
- Overvoltage Protection: yes
- Microcomputer Timer Switch: yes
- Lightning Protection: yes
- Hide Vents And Locks: yes
- Tempered Glass: yes
- Waterproof: yes
- Dustproof: yes
- Option: AR Tempered Glass
- Power Input: AC110~240V 60HZ
- Power Consumption: 550W
- Working Humidity: 5% - 90%
- Working Temperature: -20°C - +70 °C
- Power Cable: 2 Meters, built in
- Accessories Box: Remote Control, Keys, User Manual, Software CD
Catalog image; configuration and appearance are confirmed when ordering.
Configuration
Published specifications describe the source catalog configuration, not independent testing or confirmed stock. Price, delivery dates and warranty terms are confirmed in the proposal.
