Tsiolkovsky — Indoor small pitch LED video wall

Specifications

• LED configuration: SMD
• Pixel pitch: 1.25 / 1.56 /1.875 /2.5
• Pixel density (point/m2): 640000 / 409600 / 284444 / 160000
• IP Level: IP30
• Brightness: 600-800
• Color temperature (K): 3000-10000
• Viewing angle (H/V): 160 / 140
• Deviation of LED luminance center: <3%
• Brightness uniformity: >=98%
• NTSC Color gamut: >=120%
• Contrast ratio: 5000:1
• Refresh rate @60Hz: >=3840
• Chromaticity uniformity (after correction): +-0.003Cx,Cy within
• Power consumption (max ; avg)/m2: 600W ; 400W
• Input voltage (V): AC 100 ~ 240V (50-60 Hz)
• Operating temperature (·C）: -20 ~ 40
• Operating humidity(RH): 10 - 90%
• Storage temperature (·C): -30 ~ 60
• Storage humidity (RH): 10 - 80%
• Installation: Front / Rear

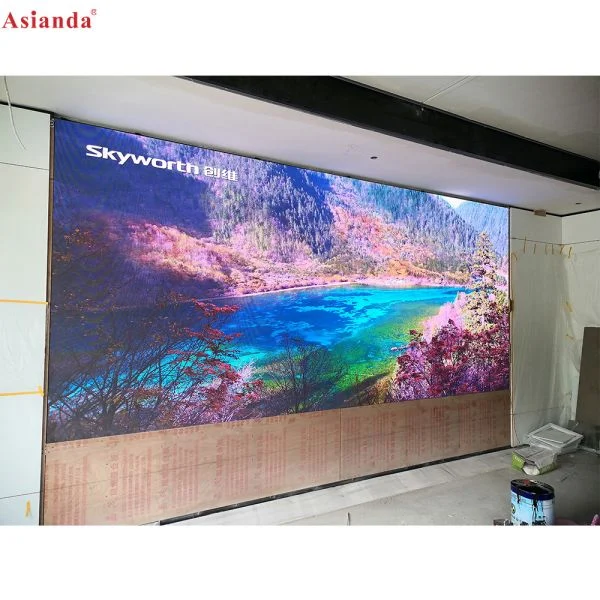

Catalog image; configuration and appearance are confirmed when ordering.
